Palladium Metal Foil

توضیحات محصول

Overview

Palladium Metal Foil is a high-purity platinum-based precious metal foil with excellent ductility and hydrogen permeability, and is used in high-end fields such as hydrogen purification, electronic components, and catalytic reactions.

As a non-ferrous metal supplier with more than 20 years of professional experience, we can also provide other precious metal products such as platinum, iridium, rhodium, palladium-silver alloys, etc. If you are interested in our products, please feel free to contact us by mail. Please trust our product quality and delivery ability.

Palladium Advantages

• Excellent ductility and plasticity: Palladium boasts one of the best ductilities among all metals, allowing it to be processed into extremely thin sheets (with thicknesses in the micrometer range), making it ideal for the fabrication of precision components.
• High melting point and thermal stability: It maintains stable physical properties at high temperatures, making it suitable for operations up to 500°C, such as in hydrogen separation processes.
• Lightweight characteristics: With a density of 12.02 g/cm³, palladium is approximately 78% lighter than platinum per unit volume, giving it a clear advantage in applications where weight is a critical factor.
• Outstanding hydrogen adsorption and transport capabilities: It efficiently separates ultra-high-purity hydrogen from mixed gases.
• Superb chemical stability: It is resistant to oxidation at room temperature and possesses strong corrosion resistance. It can withstand the erosion of many chemical substances and remains stable in acidic or oxidative environments, making it ideal for long-term experimental use.
• Highly efficient catalytic properties: As an excellent catalyst, palladium exhibits unique catalytic activity and selectivity, enabling it to accelerate chemical reactions without being consumed itself.
• Good biochemical compatibility: Palladium can be used in dental materials, medical devices, as well as in biomedical research areas such as biosensing and drug delivery systems.

Palladium Foil Dimension

Application

1. Hydrogen purification and hydrogen separation
Palladium Metal Foil uses the selective hydrogen permeability of palladium membranes to produce hydrogen purification devices and hydrogen separation membrane components to produce high-purity hydrogen.

2. Fuel cells and electrolyzed water
Palladium Foil is used as a catalytic electrode and proton conduction membrane material in proton exchange membrane fuel cells and water electrolysis hydrogen production equipment.

3. Electronics and semiconductor industry
It is used in precision electrodes, conductive leads, RF devices, semiconductor packaging, and special sputtering target substrates.

4. Catalytic reaction and chemical engineering
As a catalytic carrier or catalytic foil for hydrogenation, dehydrogenation and oxidation reactions, it is used in fine chemical industry and environmental protection catalysis.

5. Medical and biomedical use
It is used for implantable medical device electrodes, dental materials, and biosensors, and has good biocompatibility.

6. Vacuum and coating industry
It is used as a vacuum coating evaporator, sputtering auxiliary component, or to prepare high-purity palladium film layers.

7. Aerospace and high-end equipment
It is used for high-temperature anti-oxidation components, corrosion-resistant structural parts, and precision sensing elements for spacecraft.

8. Scientific research experiments and analytical instruments
As a laboratory-specific material, it is used for electrochemical testing, spectroscopic analysis, and materials science research.

Process

(1) Raw material purification: Palladium concentrate or waste is refined and chemically purified into high-purity palladium ingots or palladium blanks.

(2) Melt casting and opening billets: melting ingots under vacuum or inert atmosphere, and then forging or hot rolling into thick slabs.

(3) Multi-pass cold rolling: through repeated cold rolling, the thickness is gradually reduced to obtain different specifications of palladium foil intermediates.

(4) Intermediate annealing: Vacuum annealing is interspersed during the cold rolling process to eliminate work hardening and ensure plasticity and facilitate continued rolling.

(5) Precision rolling: Achieve the target thickness through precision cold rolling, and control the flatness and thickness tolerance.

(6) Cutting and slitting: shearing, slitting, and punching according to size requirements to make sheets or rolls.

(7) Final heat treatment: vacuum annealing adjusts the hardness and mechanical properties, and is divided into soft/semi-hard/hard finished products.

(8) Cleaning treatment: degreasing, pickling, rinsing with pure water, drying, removing oil stains, and oxide layers.

(9) Testing and packaging: testing the size, surface, purity, and performance, and packaging it in a vacuum or inert gas after qualification.

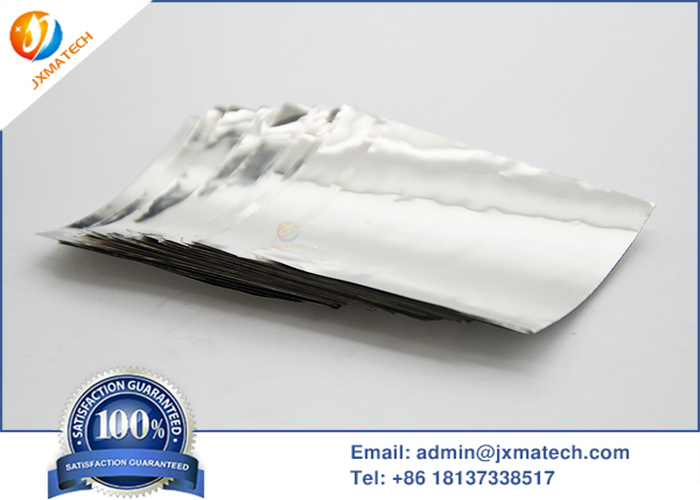

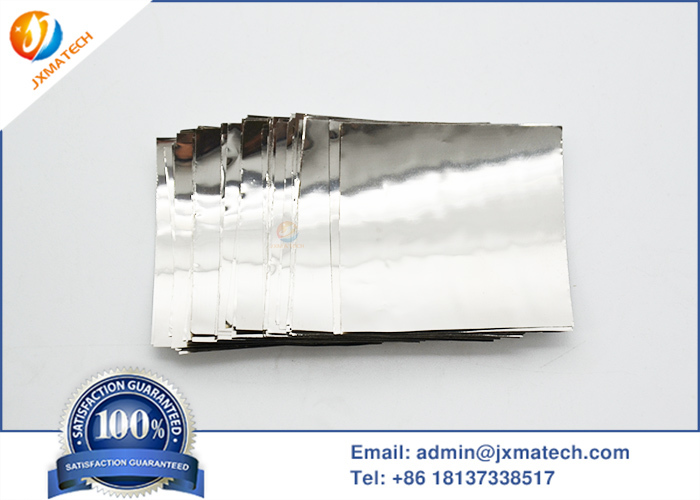

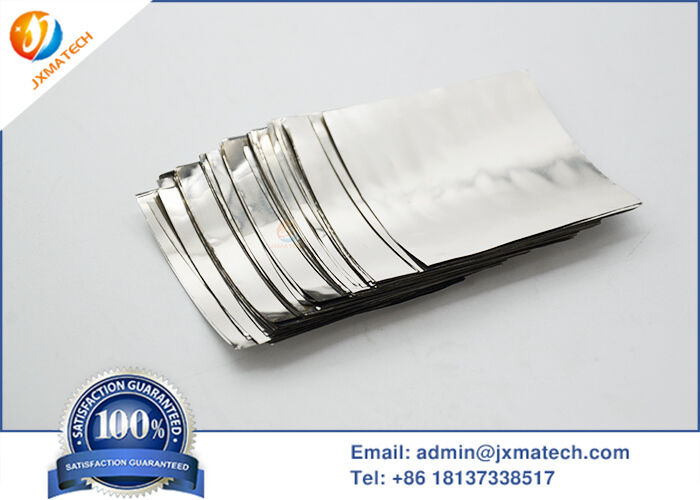

Pictures

Packing
